Performance Parameters | |||

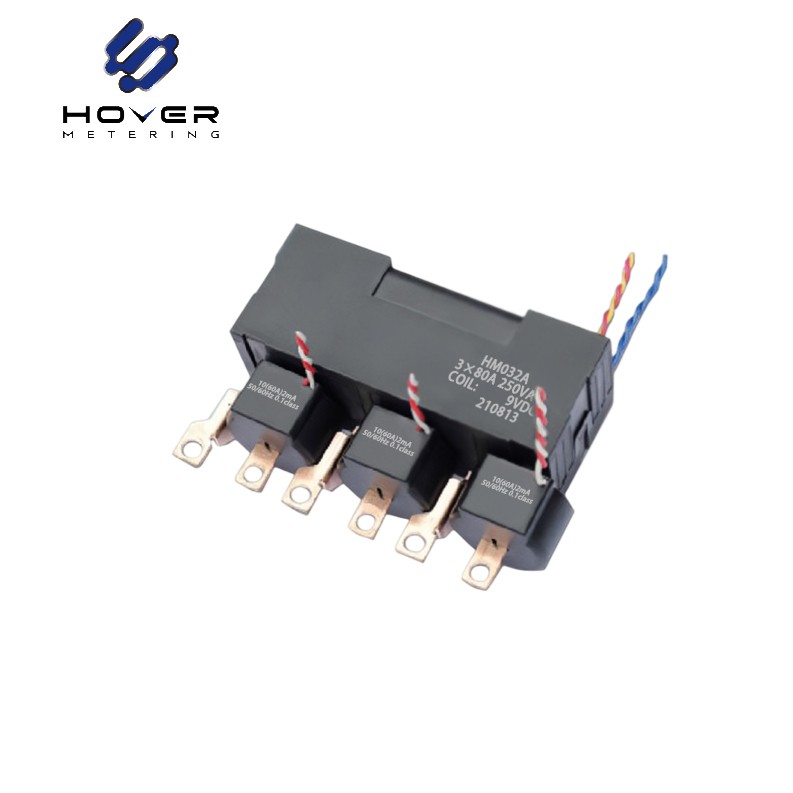

Type | HM032A | Coil Voltage(V) | 6-48(VDC) |
Contact Current | 80A | Coil Power (W) | 3.0W/6.0W |
Coil Voltage | 9VDC | Mechanical Service Life | 100000 OPS |
Coil Type(S: single coil/D: double coil) | S/D | Electrical Service Life | 10000 OPS |

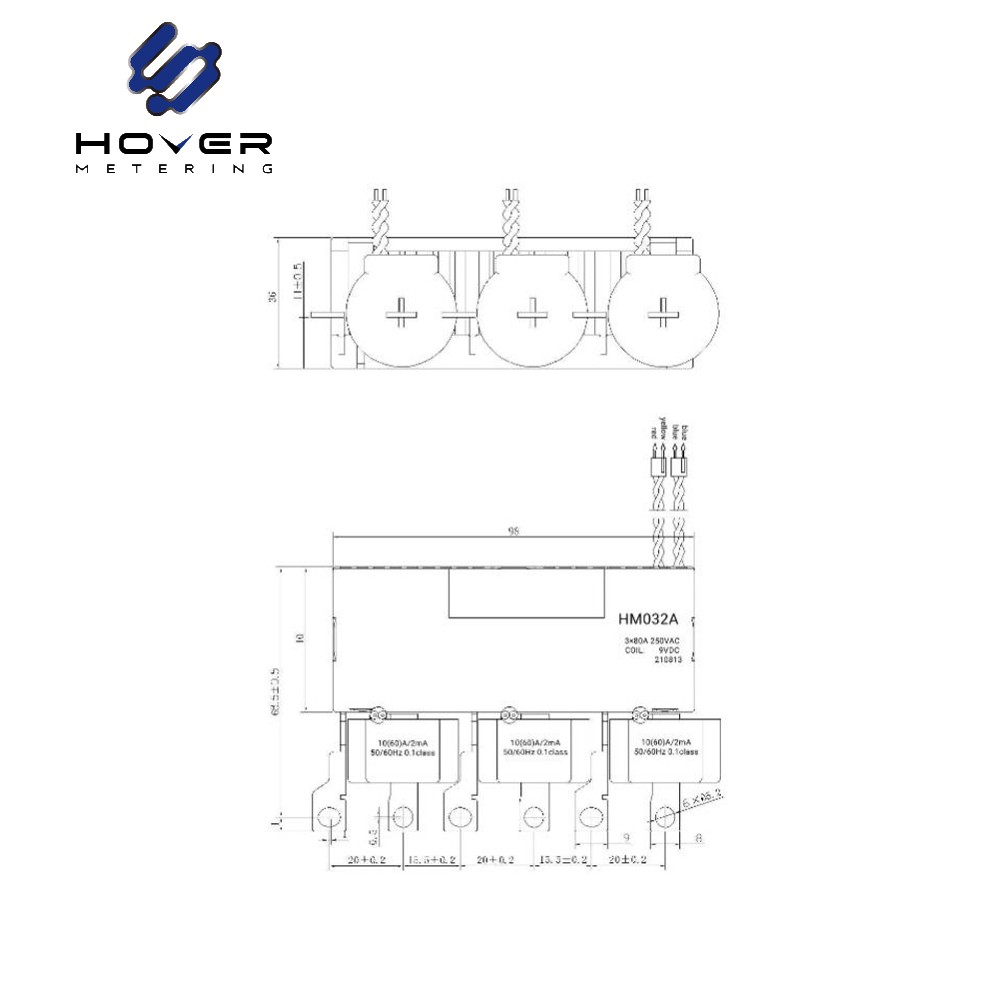

Dimension (mm) | 98×40×36 | Max. Short-Circuit Current | 2500A/10ms |
Rated Load (resistive) | 80A 250VAC | Operate/Release Time | <30ms |
Contact Form | 3B | Insulation Resistance(500VDC) | 1000MΩ |
Contact Material | AgSn2 | Contact & Contact Dielectric Strength | 2000V/1min |
Contact Resistance (1A 6VDC) | ≤1mΩ | Contact & Coil Dielectric Strength | 4000V/1min |
Max. Switching Current | 80A | Ambient Temperature | -40 ~ 70℃ |
Max. Switching Voltage | 250VAC | Unit Weight | About 150g |
Max. Switching Power | 20KVA |
