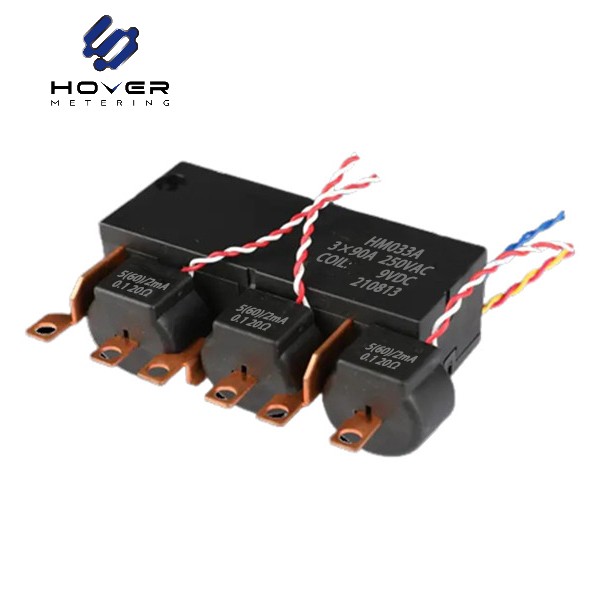

Latching Relay

HM033A 90A

Performance Parameters
TypeHM033ACoil Voltage(V)6-48(VDC)
Contact Current90ACoil Power (W)3.0W/6.0W
Coil Voltage9VDCMechanical Service Life100000 OPS

Coil Type(S: single coil/D: double coil)

S/DElectrical Service Life10000 OPS

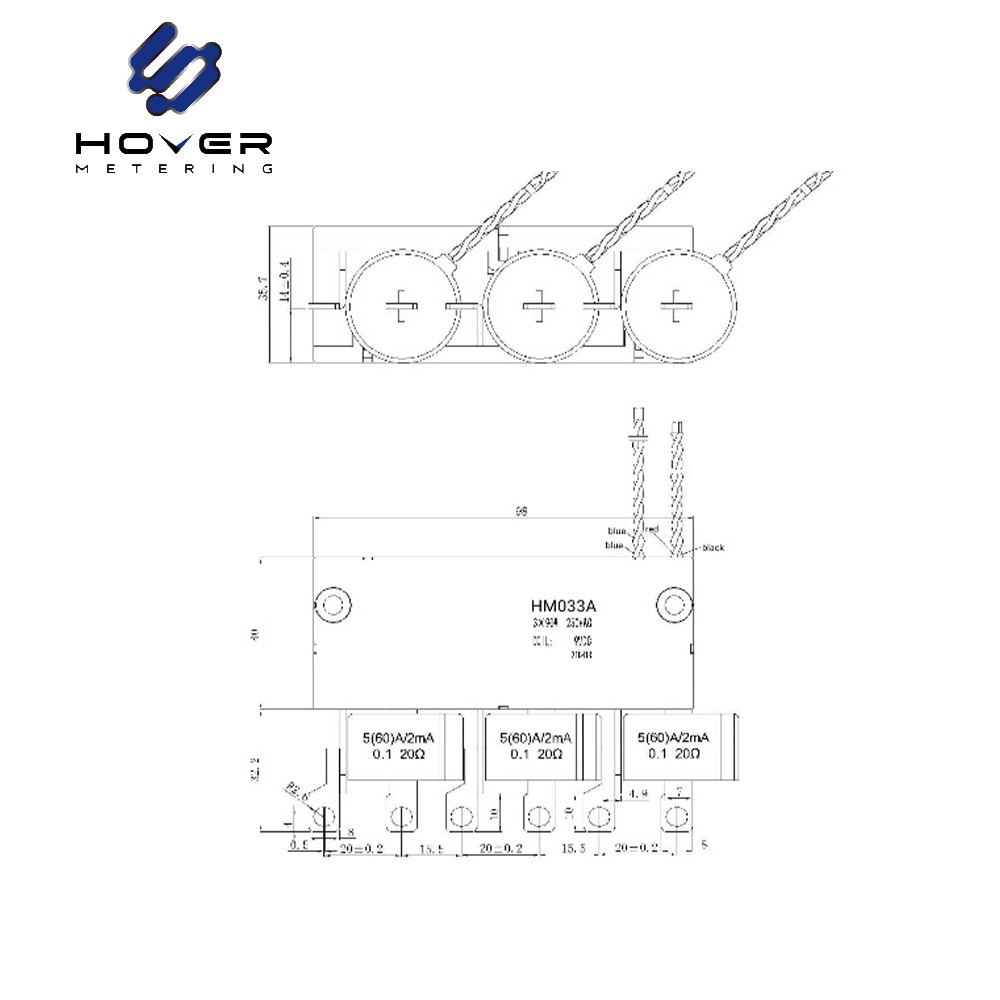

 Dimension (mm)98×40×35.7Max. Short-Circuit Current2500A/10ms
Rated Load (resistive)90A 250VACOperate/Release Time＜30ms
Contact Form3BInsulation Resistance(500VDC)1000MΩ
Contact MaterialAgSn2Contact & Contact Dielectric Strength2000V/1min
Contact Resistance (1A 6VDC)≤1mΩContact & Coil Dielectric Strength4000V/1min
Max. Switching Current90AAmbient Temperature-40 ~ 70℃
Max. Switching Voltage250VAC Unit WeightAbout 150g
Max. Switching Power22.5KVA
